We use Elastic as our data repository to store, index, and search pathway data sets. You can either connect your own BI tool to our data repository in Elastic or use our analytics & dashboarding tool: Kibana.

The data repository contains two different types of data: collected data and generated data.

Collected data refers to any atomic piece of data collected from a user or system in care flows (e.g. form responses, calculation results, etc.). These are the datapoints that you can find in the data catalog in Awell Studio and that you can use to build care flows.

Generated data refers to data generated by the orchestration of the care flow itself, i.e. data about which actions were orchestrated when in care flows.

Collected data

All the collected data is stored in a single index: orchestration-datapoint.

This index uses a normalized structure to handle the fact that the collected data can have different value types (string, boolean, numeric, date etc), and can come from many different sources (forms, calculations, Extensions, etc.).

When building a care flow in Awell Studio you have the ability to configure human readable identifiers for all data points as well as the source behind these data points. Our system uses that information to generate a `qualified_key` for each data point which combines the source key and the data point key. Let's imagine that you are building a patient form to collect the patient's weight and height, with the intent of calculating a BMI score. You set the form key to bmi, and set the question keys to height and weight respectively.

This will result in data points with the following qualified keys:

bmi.height contains the answer to the height question in the bmi form
bmi.weight contains the answer to the weight question in the bmi form

Use the Data Catalog to get an overview of all the collected data points, including the qualified keys and where in your care flow they are collected.

Property	Type	Description
id	string	Unique identifier of the data point
value	string	Serialised value of the data point
value_type	string	Primitive type of the value before serialisation (boolean, date, number, string)
date	date	Collection date (UTC)
data_set_id	string	Identifier of the pathway in which the data point was collected
activity_id	string	Identifier of the activity in which the data point was collected
data_point_definition.category	string	How the data point was collected (form, calculation, etc)
data_point_definition.qualified_key	string	User-configured identifier for the data point
pathway.id	string	Unique identifier of the pathway
pathway.pathway_definition_id	string	Identifier of the related pathway definition (version agnostic)
pathway.release_id	string	Identifier of the published pathway definition (version specific)
pathway.patient_id	string	Identifier of the patient
pathway.start_date	date	Starting date of the pathway in UTC
pathway.complete_date	date	Completion date of the pathway in UTC
pathway.status	string	Current status of the pathway
patient.id	string	Unique identifier of the patient
patient.profile.first_name	string	First name of the patient
patient.profile.last_name	string	Last name of the patient
patient.profile.name	string	Concatenation of the first name and last name
patient.profile.patient_code	string	User configurable identifier of the patient
patient.profile.sex	string	Patient sex (0 = Not known, 1 = Male, 2 = Female)
patient.profile.birth_date	string	Birth date of the patient

Sample queries

Given that the data point index is normalised, you can use any combination of the following properties to narrow down the query results:

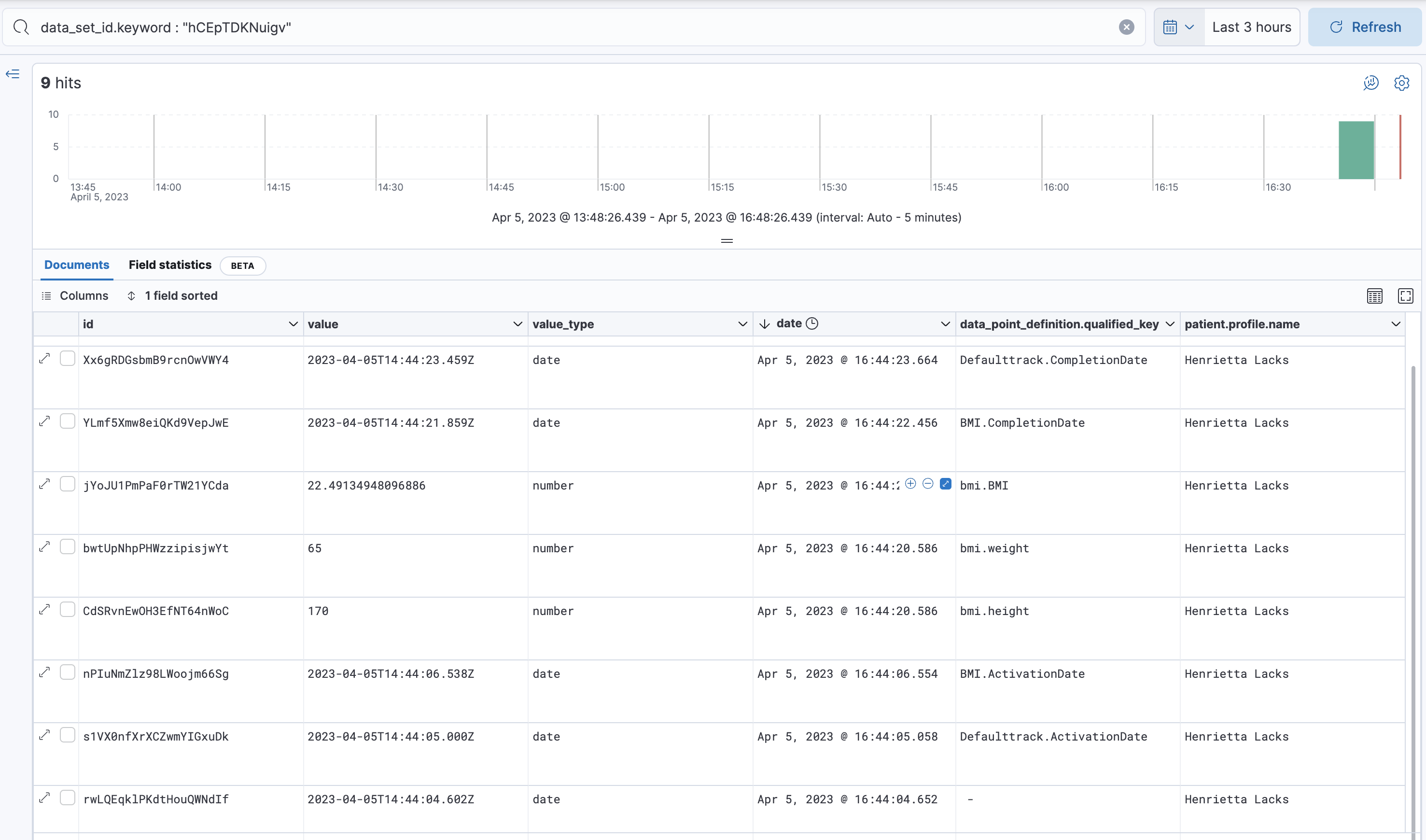

Use data_set_id or pathway.id to narrow down results to the data collected in a specific pathway
Use patient.id to narrow down results to data collected for any pathway started for a specific patient

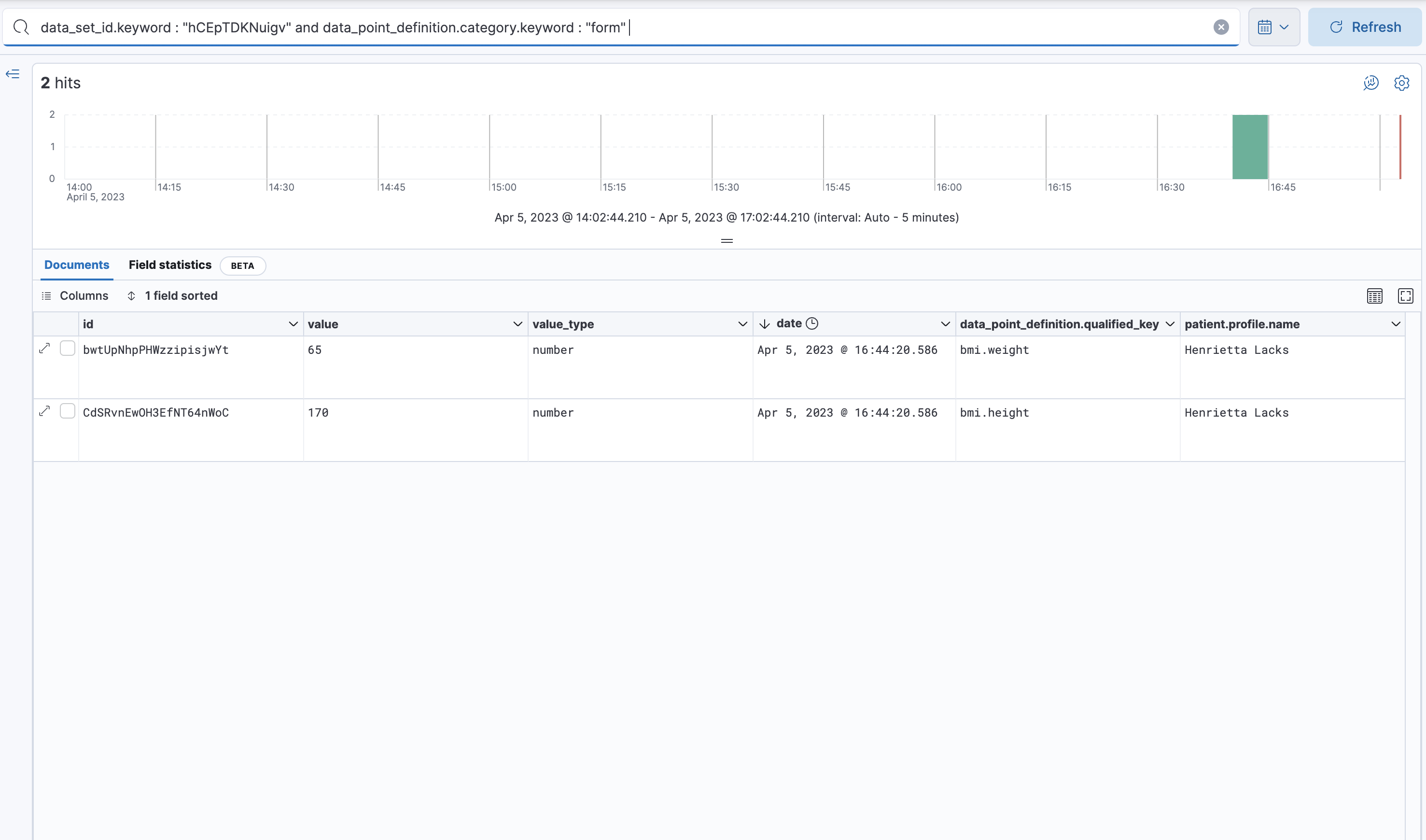

Use data_point_definition.category to narrow down results to data collected from a specific source category

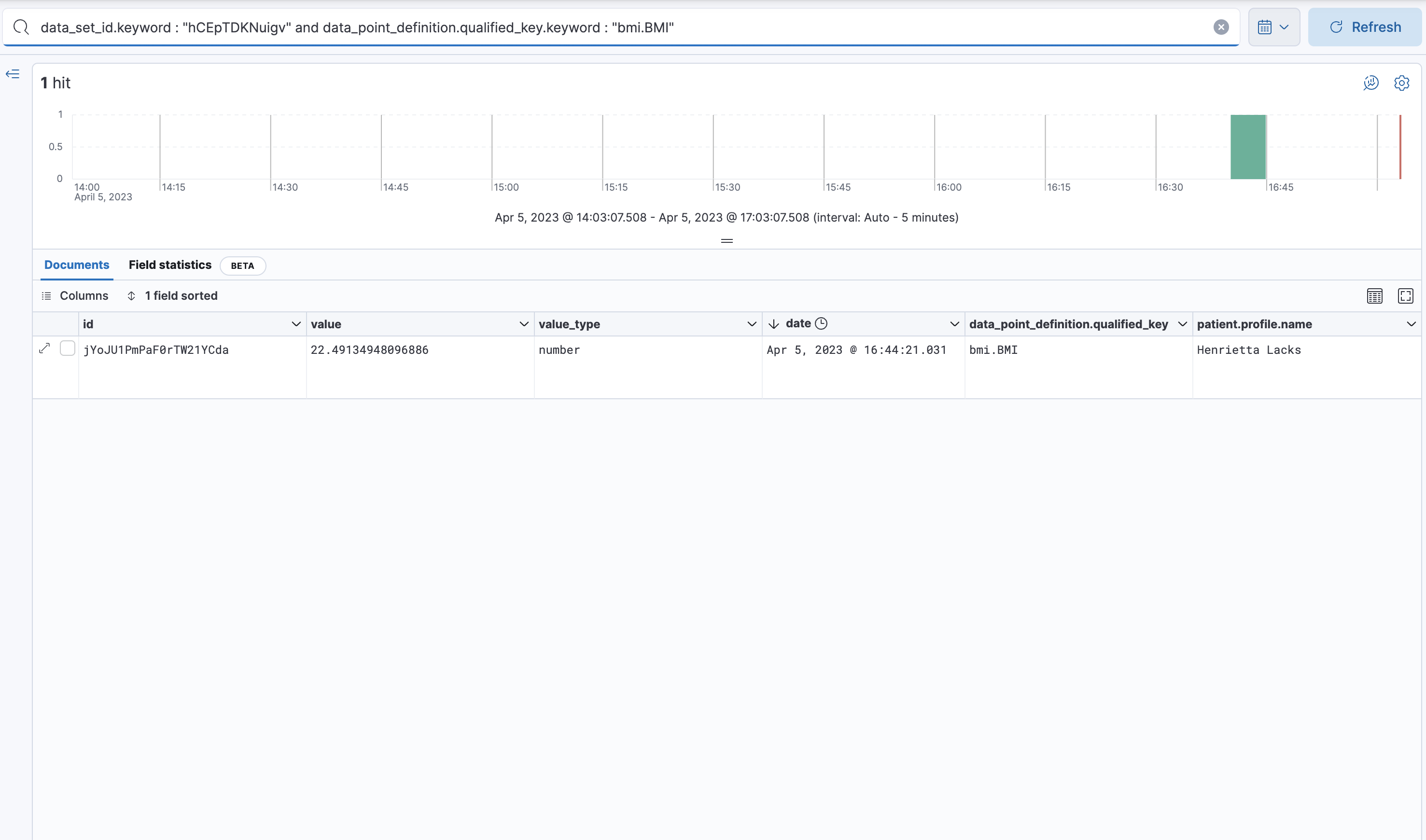

Use data_point_definition.qualified_key to narrow down results to a specific data point

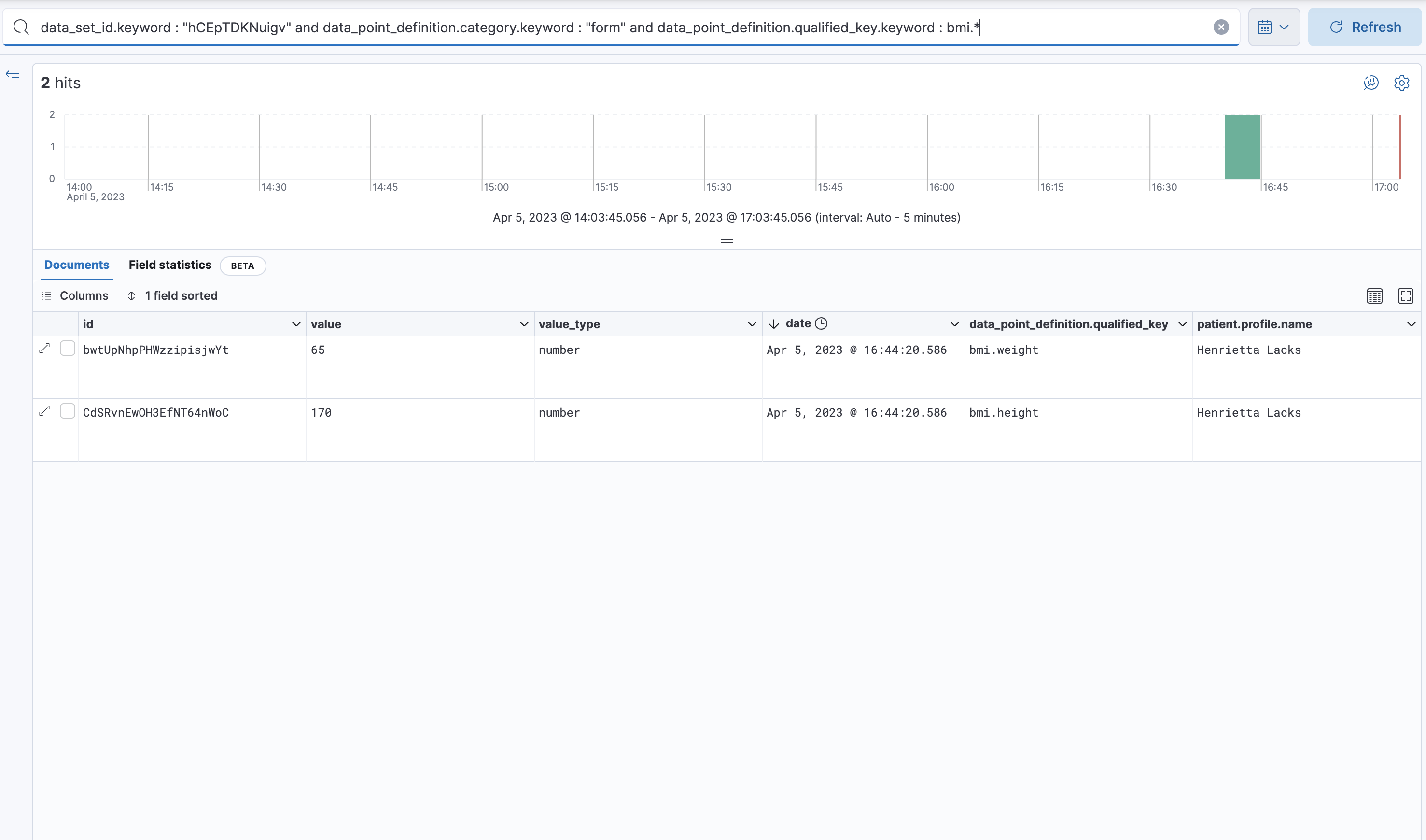

Use data_point_definition.qualified_key with wildcards to narrow down results to data points that logically belong together

Generated data

The generated data is stored in three indices:

orchestration-pathway
orchestration-step
orchestration-activity

The pathway and step indices provide a "snapshot" of the status of all pathways and steps that have ever been created in your Awell tenant (e.g. which are still active, which were completed, etc.), while the activity index tells you which system activities have occured to orchestrate your care flows. You can find more information about "activities" in the Awell platform (here)[https://developers.awellhealth.com/awell-orchestration/docs/getting-started/domain-model#activities].

Pathway (orchestration-pathway)

Property	Type	Description
id	string	Unique identifier of the pathway
pathway_definition_id	string	Identifier of the related pathway definition (version agnostic)
release_id	string	Identifier of the published pathway definition (version specific)
patient_id	string	Identifier of the patient
start_date	date	Starting date of the pathway in UTC
complete_date	date	Completion date of the pathway in UTC
status	string	Current status of the pathway
patient.id	string	Unique identifier of the patient
patient.profile.first_name	string	First name of the patient
patient.profile.last_name	string	Last name of the patient
patient.profile.name	string	Concatenation of the first name and last name
patient.profile.patient_code	string	User configurable identifier of the patient
patient.profile.sex	string	Patient sex (0 = Not known, 1 = Male, 2 = Female)
patient.profile.birth_date	string	Birth date of the patient

Step (orchestration-step)

Property	Type	Description
id	string	Unique identifier of the step
pathway_definition_id	string	Identifier of the related pathway definition (version agnostic)
release_id	string	Identifier of the published pathway definition (version specific)
status	string	Current step status
scheduled_date	date	Scheduled activation date of the step
activation_date	date	Actual activation date of the step
completion_date	date	Completion date of the step
pathway.id	string	Unique identifier of the pathway
pathway.pathway_definition_id	string	Identifier of the related pathway definition (version agnostic)
pathway.release_id	string	Identifier of the published pathway definition (version specific)
pathway.patient_id	string	Identifier of the patient
pathway.start_date	date	Starting date of the pathway in UTC
pathway.complete_date	date	Completion date of the pathway in UTC
pathway.status	string	Current status of the pathway

Activity (orchestration-activity)

Property	Type	Description
id	string	Unique identifier of the activity
stream_id	string	Identifier of the pathway this activity belongs to
subject.type	string
subject.name	string
action	string
object.id	string
object.type	string
object.name	string
indirect_object.id	string
indirect_object.type	string
indirect_object.name	string
status	string
resolution	string
date	date
pathway.id	string	Unique identifier of the pathway
pathway.pathway_definition_id	string	Identifier of the related pathway definition (version agnostic)
pathway.release_id	string	Identifier of the published pathway definition (version specific)
pathway.patient_id	string	Identifier of the patient
pathway.start_date	date	Starting date of the pathway in UTC
pathway.complete_date	date	Completion date of the pathway in UTC
pathway.status	string	Current status of the pathway
patient.id	string	Unique identifier of the patient
patient.profile.first_name	string	First name of the patient
patient.profile.last_name	string	Last name of the patient
patient.profile.name	string	Concatenation of the first name and last name
patient.profile.patient_code	string	User configurable identifier of the patient
patient.profile.sex	string	Patient sex (0 = Not known, 1 = Male, 2 = Female)
patient.profile.birth_date	string	Birth date of the patient
